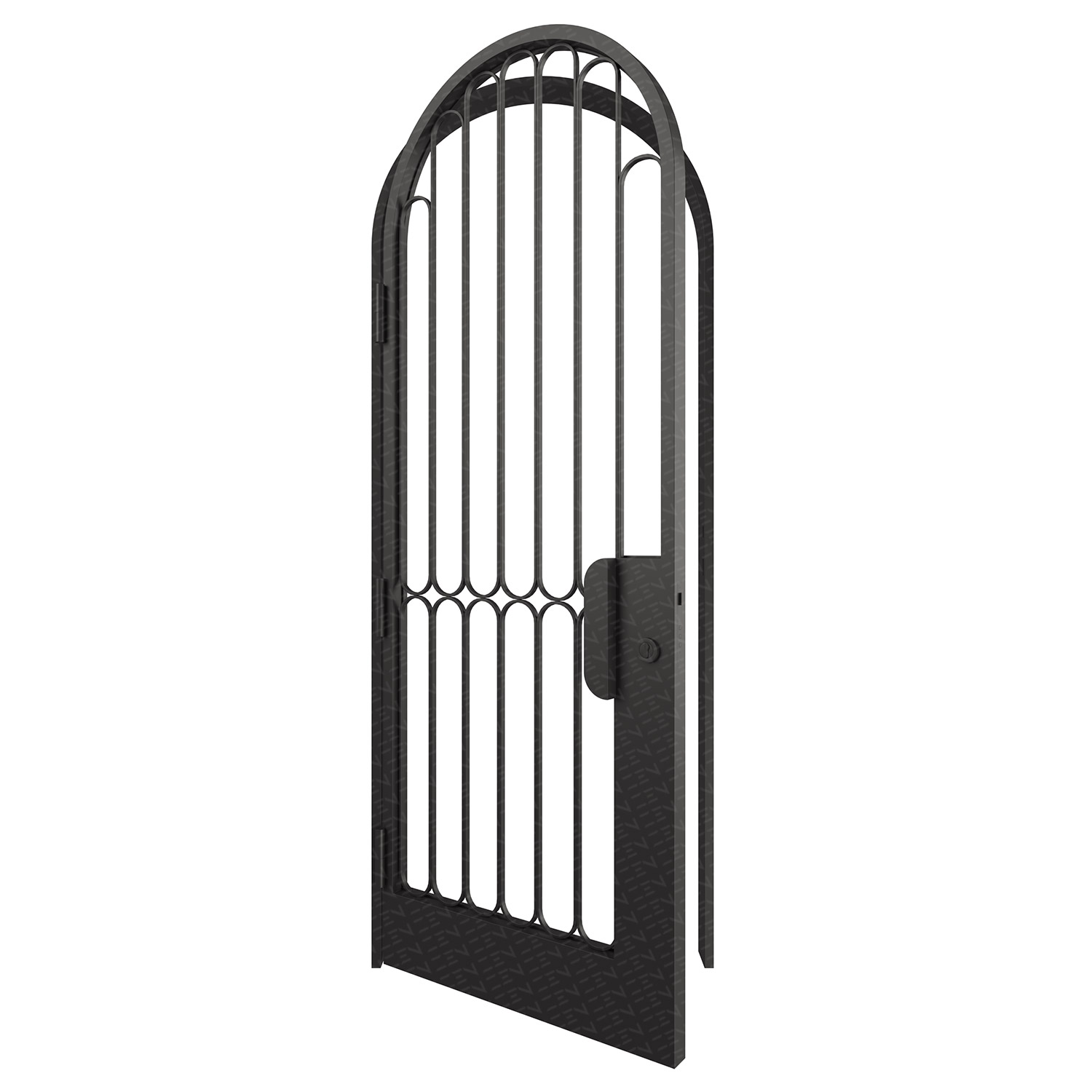

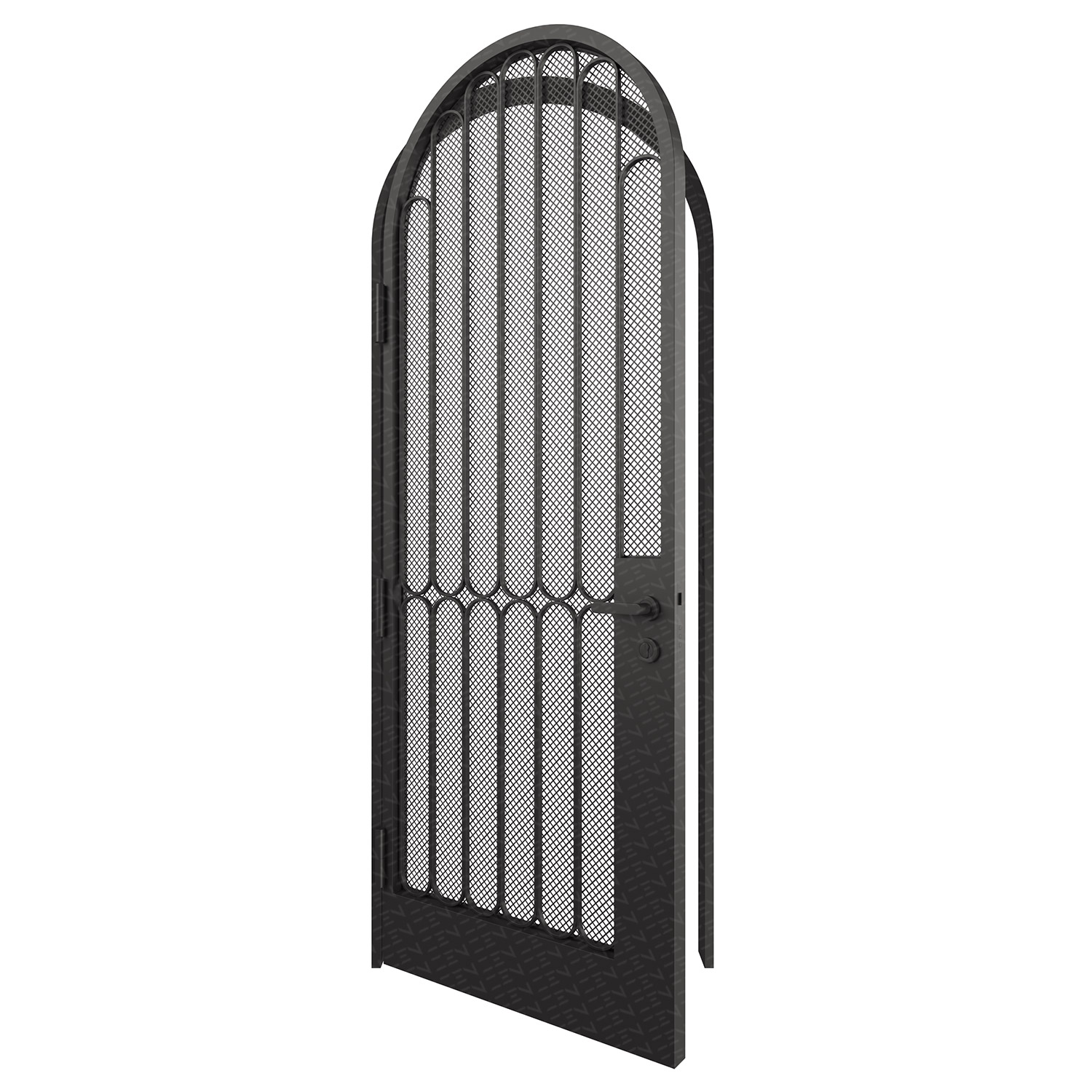

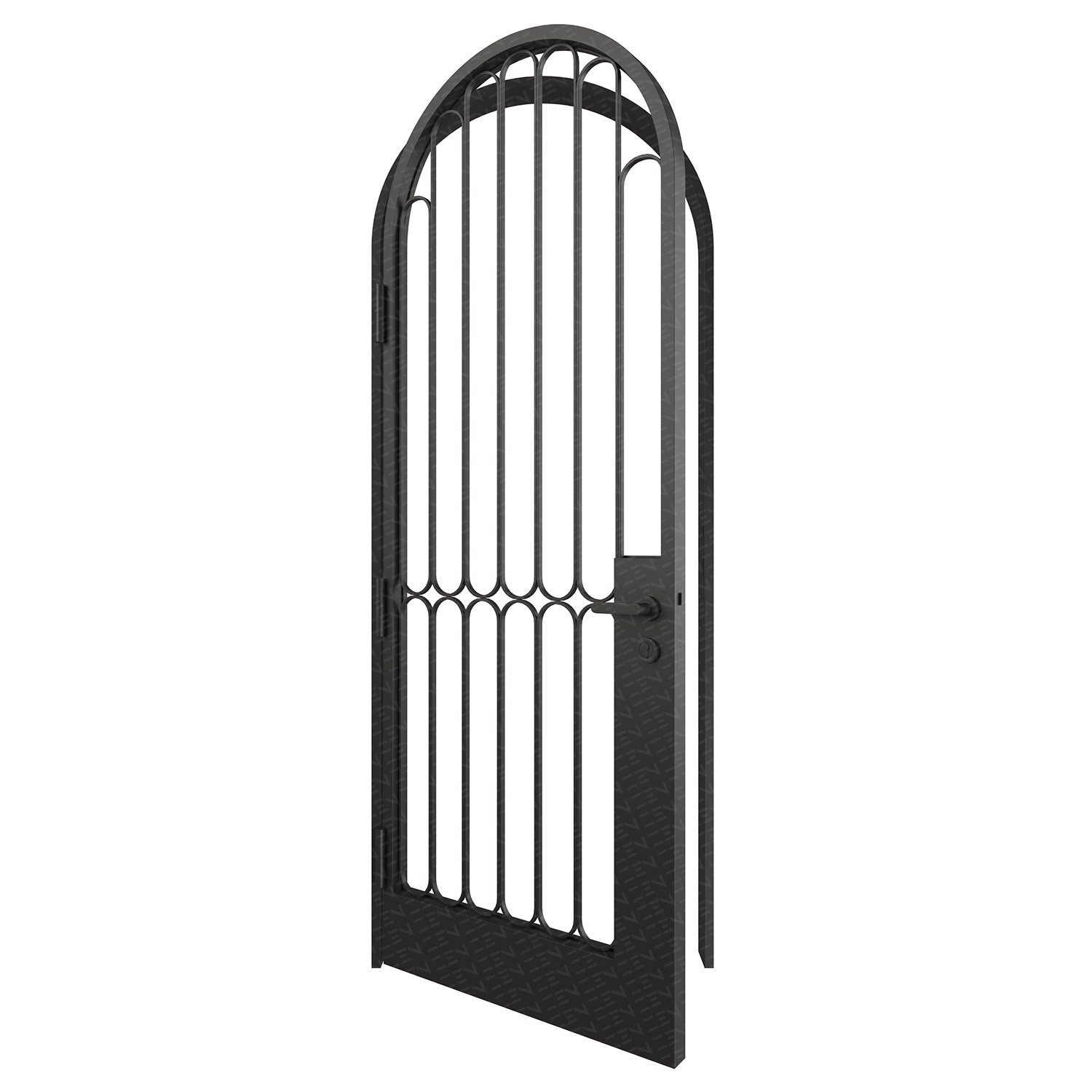

Arch Steel Frame Hinge Gates – Galvanised FPS50 Profile

  • Includes steel gate jamb, handles, roller catches
  • Cad shop drawing design included once you order
  • All doors are custom made no standard sizes – contact us for a quote.

Design options are completely flexible, if you have seen something you like please send it to us and we can price it.

MAXIMUM SIZES FPS50 Tube Steel
DOOR / WINDOW TYPE HEIGHT (mm) WIDTH (mm)
Hinge Door 3600 1200
Enquire Now

NOTE: Total Door Frame can be custom made to any size you need, please contact us if you need a more customised estimate.

Category:

Description

Features & Benefits

  • Modern Architectural Design
  • Custom Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Steel Tube Profile
  • BASF Advanced 7 Stage Coating System, a superior finish to regular Fluorocarbon & Powder coating
  • High Quality Door Hardware
  • Designed to Impress and Built to Last
  • 10 Year Warranty

Specifications

  • Zen Arch Steel Frame Gates – Galvanised FPS50 Profile
  • Gate Design: Custom
  • Gate Type: Hinged Gate
  • Location: External or Internal
  • Hinges: 3 or 4 Heavy Duty Welded, Lift-off, 180-degree hinges with brass washers
  • Mounting Type: Tabs Outside of Jamb, Pre-Drilled Mounting Holes Inside of Jamb – visit our Mounting Typespage for more options
  • Door Jamb: 25/30/40mm x 100mm (larger jamb profiles available at extra cost)
  • Open way (entering): In-Swing or Out-Swing
  • Roller Catches: Included
  • Colour Finish: Visit our Paint Finishes page
  • Lever Handles: Visit our Pittella page
  • Pull Handles: Visit our Custom Pull Handles page
  • Locks: Visit our Pittella page
  • Material: Precision cold formed galvanised FPS50 Slimline Tube Steel Profile – ”P” profile design 1.8mm wall thickness tube with foam injected – Very compact profiles with minimal depth and sight-lines
  • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
    Gritblasting SA 2.5; The 1st layer is a sealing primer; The 2nd layer is a high-durable top coating; Total thickness is at least 150-180 microns according to VMRG quality requirements.
  • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Package: Sealed Wooden Box
  • CAD Design Drawing: Yes
