FWA50 Solid Iron Panel

Bespoke iron entry door with textured vertical lines and circular detail, flanked by large glass panels and surrounded by a modern façade.

Precision Engineered Solid Iron Panel Profiles

Textured golden background suggesting warmth, luxury, and elegance, enhancing the theme of bespoke architectural design.

Designed for strength, insulation, and visual impact, the FWA50 Solid Iron Panel Profile redefines the standard for premium entry doors. Constructed with a solid iron panel and a 45mm polyurethane core, it offers exceptional thermal and acoustic performance while maintaining a bold architectural presence. The FWA50 system provides unmatched security and is ideal for statement entryways that demand both function and finesse.

Each door panel is sandblasted, galvanised, and finished with a fluorine carbon coating for superior weather resistance and long-term protection.

Enquire Now

Engineered Strength. Enduring Beauty.

Textured golden background suggesting warmth, luxury, and elegance, enhancing the theme of bespoke architectural design.
  • Premium solid iron panel construction designed for architectural entry doors.
  • Sandblasted and galvanised steel with a protective fluorocarbon paint finish for enhanced durability and corrosion resistance.
  • Dual-sided solid iron panels with material thicknesses up to 3mm.
  • Integrated 44mm polyurethane insulation core for improved thermal and acoustic performance.
  • Available in 50mm and 80mm door panel thicknesses.
  • Selection of steel jamb profiles in 50mm × 150mm, 200mm and 250mm dimensions.
  • Excellent sound insulation properties for enhanced internal comfort.
  • Fully customisable designs, dimensions and architectural detailing.
  • Recommended for external entry door applications.
  • A robust architectural entry door system combining exceptional strength, insulation and contemporary design flexibility.
Get In Touch
Solid iron door with a sleek dark finish, featuring a distinctive angled top and textured panel detailing, showcasing modern design.

FWA50 Inside View (Hinge Door)

Technical drawing of a solid iron panel door, displaying dimensions, tubing details, and a curved handle design.
MAXIMUM SIZES FWA50 Iron Panel
DOOR TYPE HEIGHT (mm) WIDTH (mm)
Hinge Door 3000 1200
Pivot Doors 3000 *1500/1800
  • *Max panel width dependant on door design
  • Maximum Pivot Door Weight 500kg
Download Full Specifications

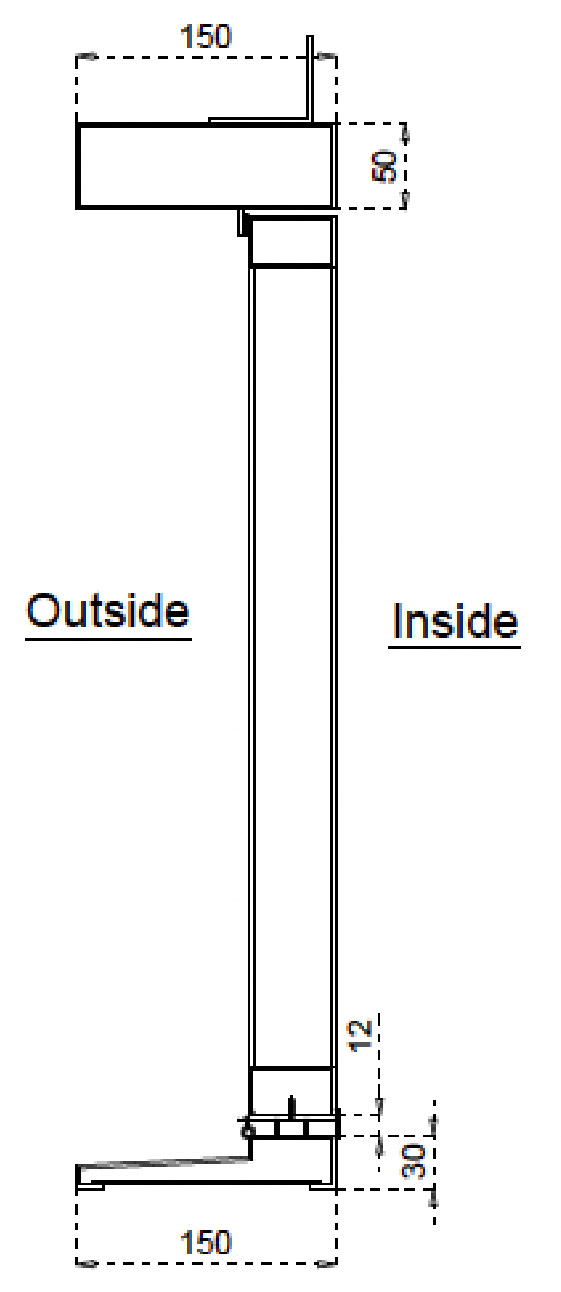

Technical drawing of a solid iron panel; features dimensions and labels for 'Outside' and 'Inside', emphasising precision engineering.
Sleek wooden doorway with vertical grooves, featuring a circular inset handle and adjacent smooth cabinetry, softly lit for emphasis.
Curved wooden staircase leads to a light-filled corridor with concrete walls and a white panel door, highlighting modern architectural simplicity.
Stylish bronze vertical ribbed iron door with a circular cutout, framed by vibrant green hedges in a modern entrance setting.
A sleek black door with a circular handle opens to a bright white room featuring a minimalist gold wall hook and geometric staircase.

Entry Door
Waterhouse – NSW

Minimalist black iron door with a sleek design and subtle handle, showcased against a plain background. Perfect for modern aesthetics.
Minimalist black steel door slightly ajar, showcasing a sleek handle and subtle textured surface design against a white background.
Minimal
Bespoke black steel door featuring a geometric design with a recessed handle, emphasising modern and minimalist aesthetics.
Bespoke black iron door with a textured surface, partially open within a minimalist steel frame, highlighting modern design elements.
Neo
Black iron door featuring a modern geometric design with a circular handle, highlighted by a textured pattern.
Sleek black iron door with a geometric pattern, partially open, showcasing its modern design and sturdy construction.
Arrow
Stylish black iron door featuring a geometric, layered design with a side panel and a discreet handle.
Sleek black iron door with a diagonal pattern, partially open in a minimalist frame, showcasing a modern design aesthetic.
Deco
Chevron-patterned black iron door with a sleek, modern design, featuring a minimalist handle and a geometric layout.
Chevron-patterned black iron door set in a sleek frame, slightly ajar, showcasing an elegant and modern design.
Chevron
Sleek black iron door with a modern design, featuring horizontal panels and a round handle, set against a plain background.
Bespoke black iron door with a textured surface and modern design, partially open within a sleek steel frame.
Moderno

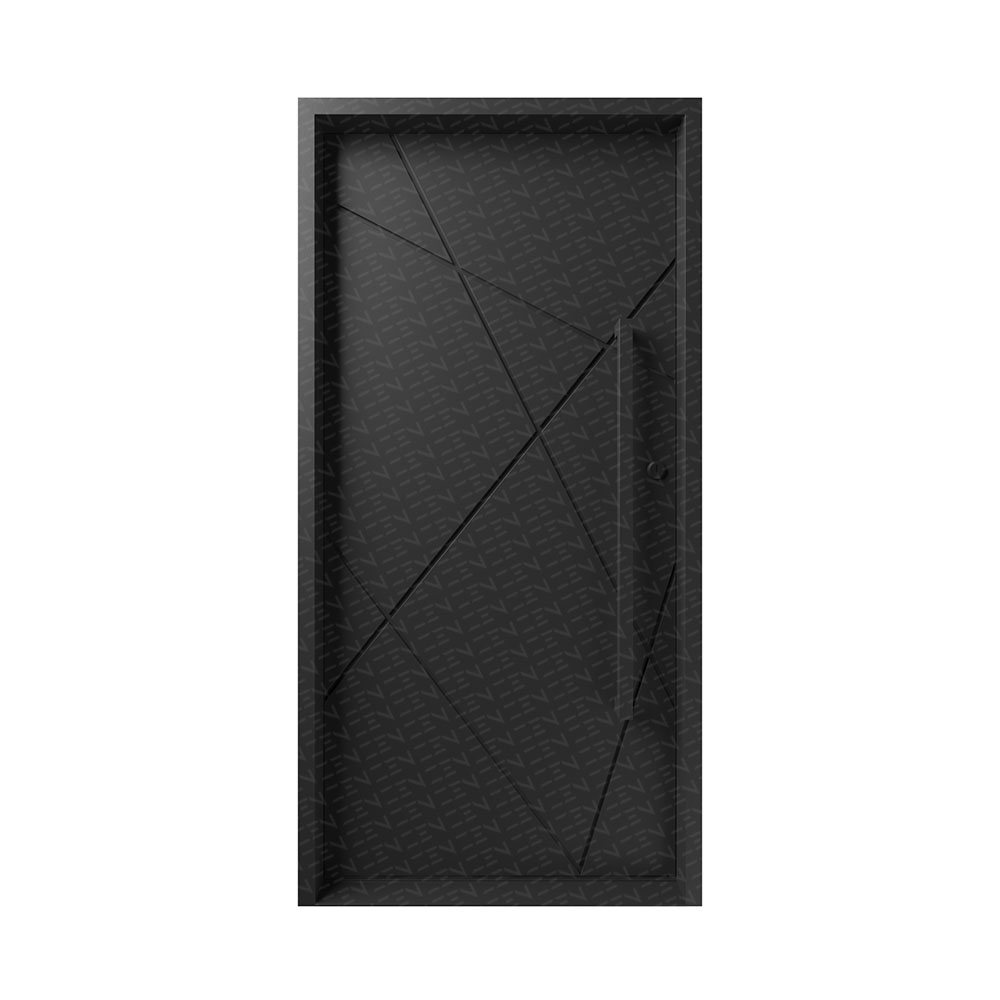

Textured black iron door featuring geometric angles and a sleek handle, showcasing modern design and craftsmanship.
A modern black iron door with a geometric, angular design, featuring a sleek handle and set within a minimalist frame.
Geo
Custom-designed dark steel entry door with a vertical batten pattern and a minimalist handle, showcasing modern architectural aesthetics.
Bespoke steel door with a textured finish, featuring vertical panels and a sleek handle, showcased in an open position.
Batten Custom
Black vertical slatted door with a distinctive diagonal handle, showcasing a sleek and modern design suitable for contemporary architecture.
Bespoke black iron door featuring a battened design, partially open to reveal a geometric triangular handle, set in a sleek frame.
Batten Edge

Explore the bold construction and engineered performance of our FWA50 Solid Iron Panel Series. Each panel showcases superior craftsmanship, exceptional insulation, and structural precision — defining a new standard for strength, security, and architectural expression in premium entry doors.

View All Iron Door Designs

FWA50 Solid Iron Products

Textured golden background suggesting warmth, luxury, and elegance, enhancing the theme of bespoke architectural design.

Crafted for strength and sophistication, each FWA50 Solid Iron Panel delivers remarkable stability, exceptional insulation, and a bold architectural statement.
