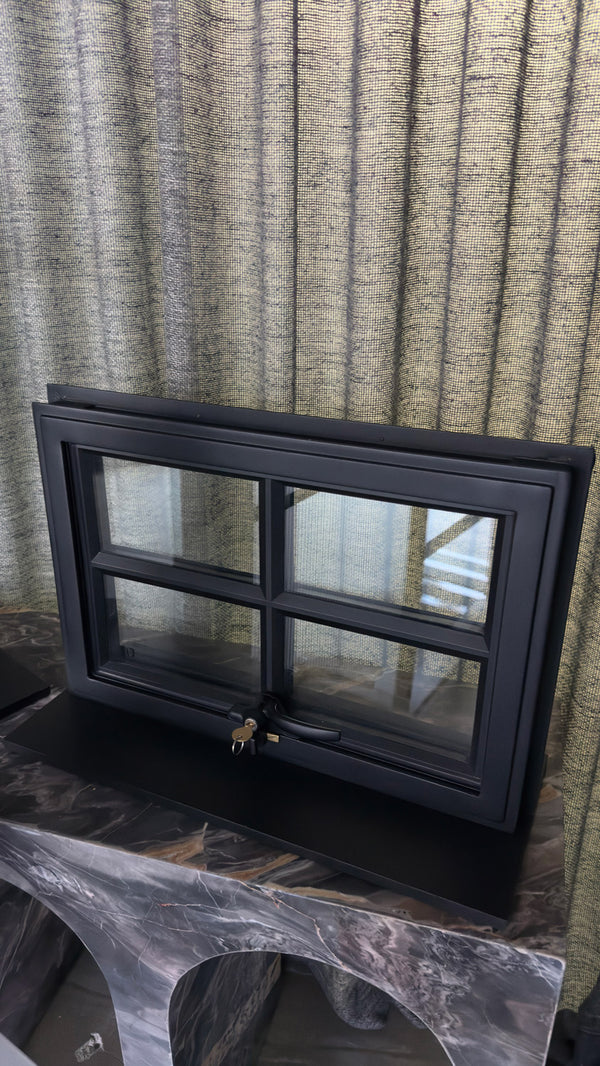

Black steel-framed awning window with a grid design, showcasing precision craftsmanship against a textured fabric backdrop.
Black steel frame awning window showcasing a hinge mechanism, set against a textured grey backdrop.

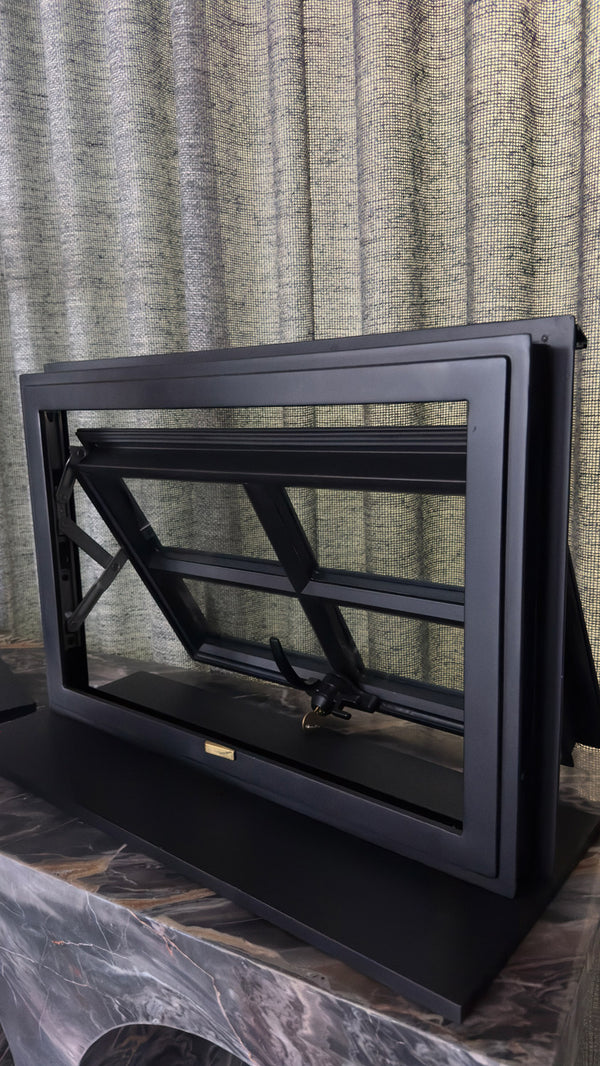

Black steel-framed awning window on a marble surface, showcasing a sleek design with a hinge mechanism against a textured backdrop.
Black steel frame window with a grid design, positioned on a marble surface, against textured grey curtains.
Black steel-framed awning window with a locking mechanism, set against a textured fabric background and a marble surface.

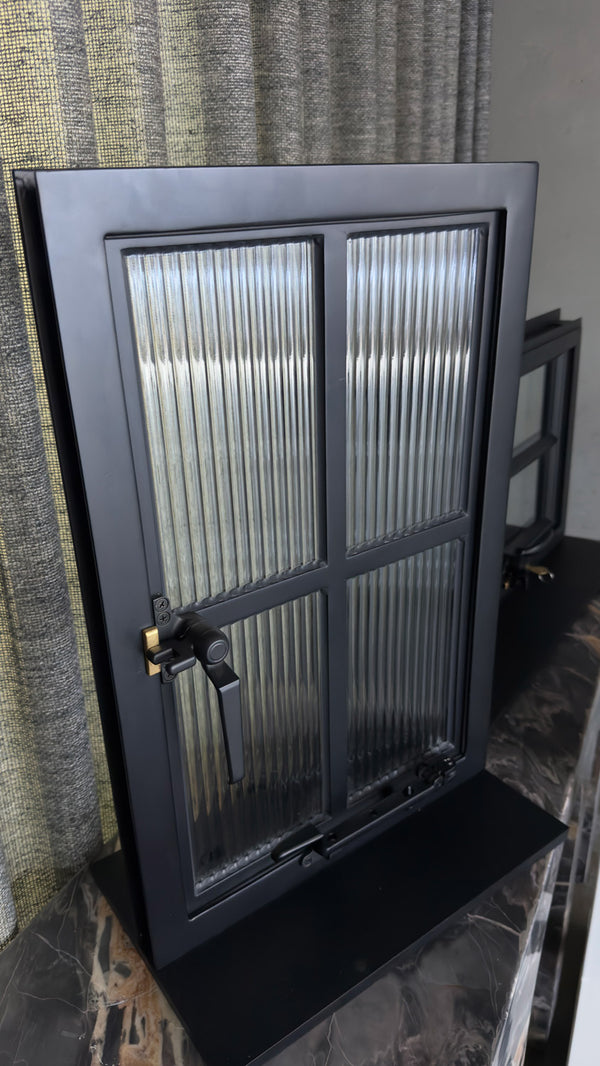

Black steel hinge window with ribbed glass, positioned on a marble surface, highlighting bespoke design and architectural detail.
Steel-framed awning window with ribbed glass, featuring a black finish and a brass handle, set against a textured fabric backdrop.
Black steel-framed awning window with ribbed glass and a side handle, set against a textured grey background.
Steel-framed awning window with ribbed glass, featured against a textured grey backdrop, showcasing a sleek black finish.
Black steel-framed awning window with vertical ribbed glass, showcasing a hinge mechanism, set against a marble surface.
Close-up of a black steel hinge mechanism on a glazed window, featuring ribbed glass and a sleek, modern design against a marbled surface.
Black steel-framed awning window featuring textured glass, showcased against a grey fabric backdrop. Modern and elegant design.
Black steel-framed hinge window partially opened, featuring clear glass and a modern design, set against a concrete wall backdrop.

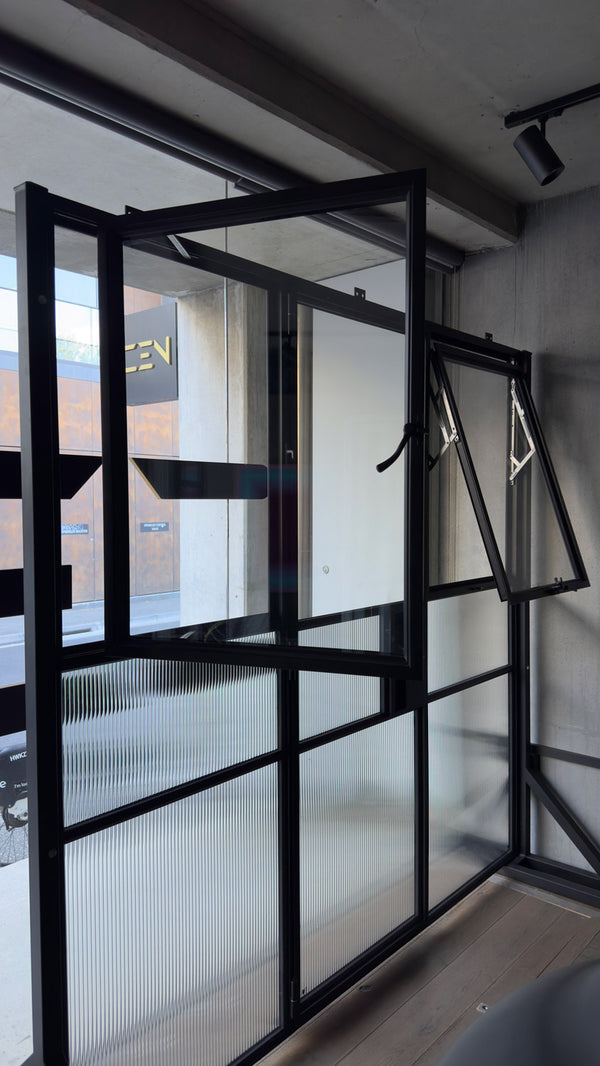

Black steel-framed awning window partially open, showcasing sleek design against a textured concrete wall. Modern architectural feature.
Close-up of a black steel-framed awning window hinge, showcasing sleek design against a concrete wall background.

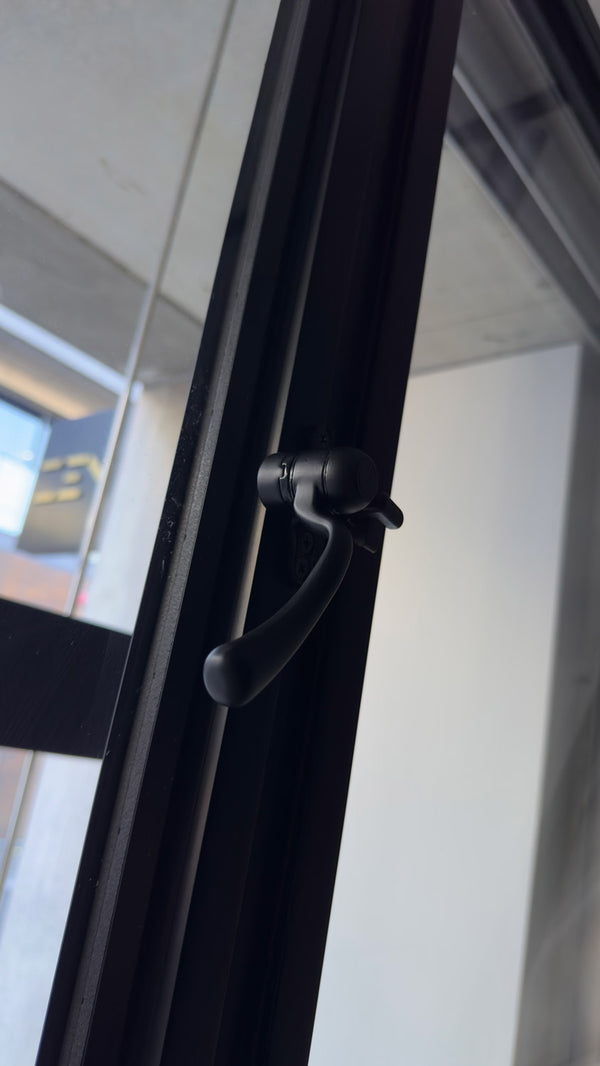

Black metal handle and hinge on a steel-framed awning window, featuring vertical glass panels with a textured surface.

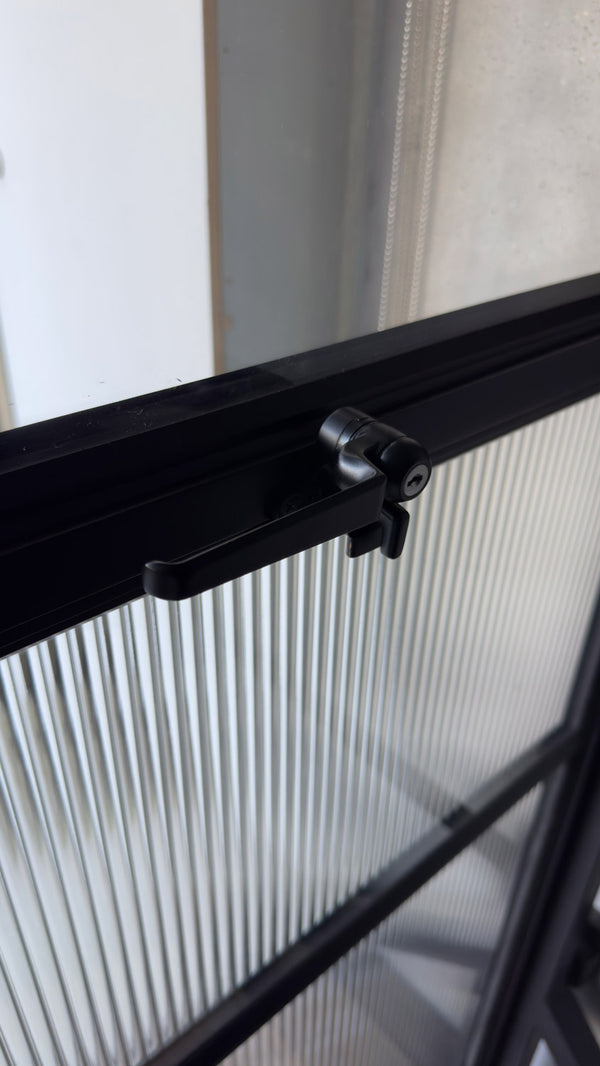

Close-up of a steel-framed awning window with a black handle, showcasing textured glass and a sleek, modern design.
Close-up of a black steel hinge mechanism on a frosted glass window, showcasing precision engineering in architectural design.

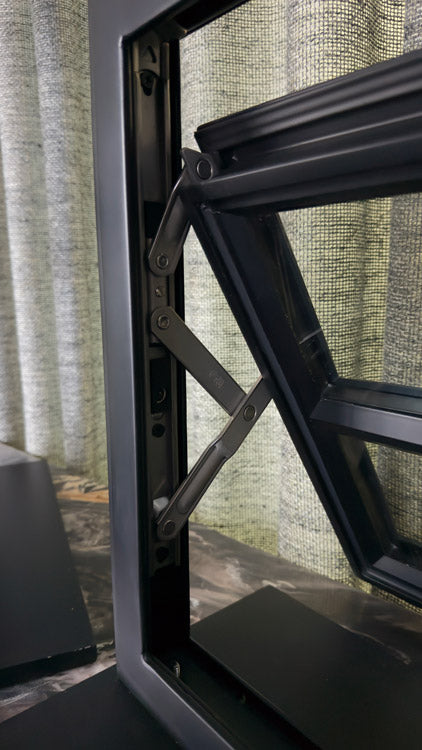

Close-up of a black steel hinge mechanism on a steel-framed awning window, showcasing sleek design and precision engineering.

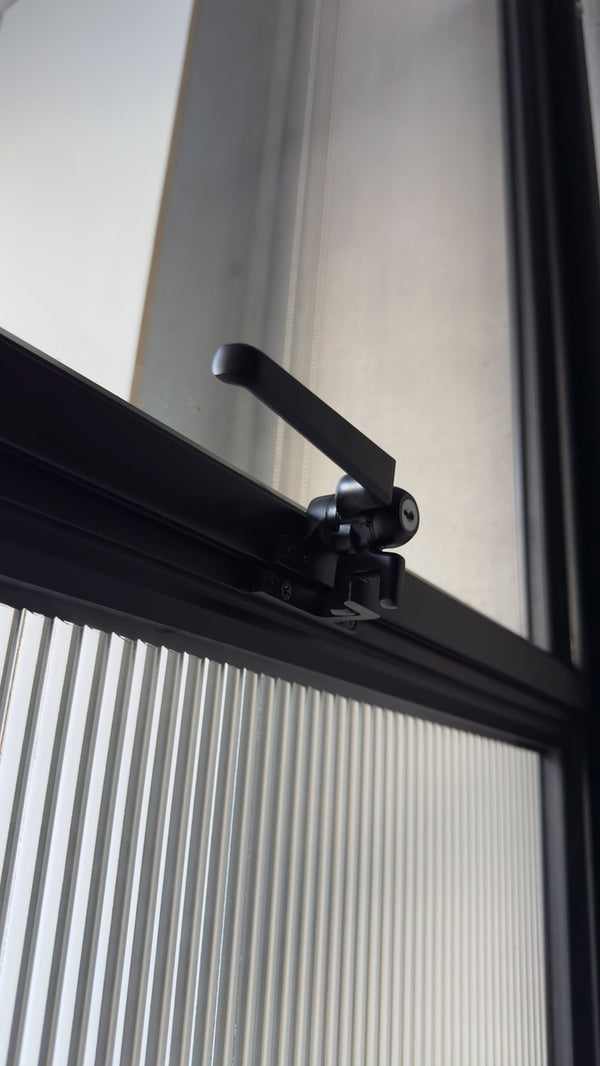

Close-up of a black metal window hinge and handle on a sleek steel window frame, showcasing a modern design aesthetic.
Close-up of a black hinge mechanism on a steel window frame, showcasing sleek design and functionality in an architectural setting.
Black steel hinge mechanism on a partially open steel frame awning window, showcasing modern design and craftsmanship against a concrete backdrop.
Close-up view of a steel frame awning window hinge mechanism, showcasing sleek metal design against a concrete backdrop.
Modern living room featuring a stone fireplace, large arched window with steel framing, abstract artwork, and neutral furnishings.
Stylish kitchen featuring arched black steel windows with sheer curtains, a marble countertop, and a wooden dining table with yellow chairs.
Modern living room featuring a stone fireplace, large arched window with steel framing, abstract artwork, and neutral furnishings.
Contemporary white house with arched black doors, stone-clad planters, and sleek glass windows, surrounded by green plants against a clear blue sky.
Bespoke black steel-framed window with arched panes, overlooking a garden, framed by a potted plant in a minimalist interior.
Black steel-framed windows with arched tops, set in a warm brick wall, showcasing a glimpse of the interior space.
Black steel-framed windows with arched tops showcase a light-filled interior, featuring a modern lounge and decorative greenery.
A modern architectural house features grey tones, large glass doors, palm trees, and a stone patio in a landscaped setting.
Textured grey exterior featuring a large window, balcony plants, and autumn foliage in modern planters, creating a serene atmosphere.
A stylish kitchen featuring a steel-framed arched window, dark cabinetry, a marble countertop, and a coffee machine inviting a modern aesthetic.
Bespoke steel window with arched top, framed by marble surfaces, showcasing greenery outside and elegant interior décor elements.
Black steel framed awning windows open inward, revealing a green garden and white picket fence, set against a marble interior backdrop.
Black steel-framed glass doors with vertical lines open to a modern kitchen, showcasing a minimalist design and natural light.
Bright interior featuring black steel-framed doors, elegant staircase, and blue armchairs, creating a modern and inviting atmosphere.
Bright and airy living space featuring a light grey sofa with orange cushions, sleek black chairs, a round coffee table, and large windows.
Modern red brick Victorian residence featuring sleek steel windows, lush trees, and a blend of traditional and contemporary design elements.
Black steel-framed awning window with a grid design, showcasing precision craftsmanship against a textured fabric backdrop.
Black steel frame awning window showcasing a hinge mechanism, set against a textured grey backdrop.
Black steel-framed awning window on a marble surface, showcasing a sleek design with a hinge mechanism against a textured backdrop.
Black steel frame window with a grid design, positioned on a marble surface, against textured grey curtains.
Black steel-framed awning window with a locking mechanism, set against a textured fabric background and a marble surface.
Black steel hinge window with ribbed glass, positioned on a marble surface, highlighting bespoke design and architectural detail.
Steel-framed awning window with ribbed glass, featuring a black finish and a brass handle, set against a textured fabric backdrop.
Black steel-framed awning window with ribbed glass and a side handle, set against a textured grey background.
Steel-framed awning window with ribbed glass, featured against a textured grey backdrop, showcasing a sleek black finish.
Black steel-framed awning window with vertical ribbed glass, showcasing a hinge mechanism, set against a marble surface.
Close-up of a black steel hinge mechanism on a glazed window, featuring ribbed glass and a sleek, modern design against a marbled surface.
Black steel-framed awning window featuring textured glass, showcased against a grey fabric backdrop. Modern and elegant design.
Black steel-framed hinge window partially opened, featuring clear glass and a modern design, set against a concrete wall backdrop.
Black steel-framed awning window partially open, showcasing sleek design against a textured concrete wall. Modern architectural feature.
Close-up of a black steel-framed awning window hinge, showcasing sleek design against a concrete wall background.
Black metal handle and hinge on a steel-framed awning window, featuring vertical glass panels with a textured surface.
Close-up of a steel-framed awning window with a black handle, showcasing textured glass and a sleek, modern design.
Close-up of a black steel hinge mechanism on a frosted glass window, showcasing precision engineering in architectural design.
Close-up of a black steel hinge mechanism on a steel-framed awning window, showcasing sleek design and precision engineering.
Close-up of a black metal window hinge and handle on a sleek steel window frame, showcasing a modern design aesthetic.
Close-up of a black hinge mechanism on a steel window frame, showcasing sleek design and functionality in an architectural setting.
Black steel hinge mechanism on a partially open steel frame awning window, showcasing modern design and craftsmanship against a concrete backdrop.
Close-up view of a steel frame awning window hinge mechanism, showcasing sleek metal design against a concrete backdrop.

Steel Frame Awning & Casement Windows – Galvanised W40 Profile – Zen Doors & Windows

  • Ottostumm W40 Solid Hot Rolled Steel Profile
  • Includes Steel Window Jamb, Handles, Locks, Stays, Seals & Glazing
  • Cad Shop Drawing Design Included Once You Order
  • All Windows Are Custom Made No Standard Sizes – Contact Us For A Quote.

Design and glass options are completely flexible, if you have seen something you like please send it to us and we can price it.

MAXIMUM SIZES FPS50 Tube Steel
DOOR / WINDOW TYPE HEIGHT (mm) WIDTH (mm)
*Fixed Window *5500 *5500
Awning Window 2400 900
Casement Window 2450 900
Hinge Door/Window 2450 900
Internal Cavity/Barn Sliding Door 3600 1500
Pivot Doors NA NA
External Lift & Slide Sliding Door 3000 1200
Bifold Door 2450 1200
Enquire Now

NOTE: Total Window Frames can be custom made to any size you need, please contact us if you require larger windows and need a more customised estimate.

NOTE: External Windows can be supplied glazed or un-glazed depending on your building surveyor/certifier.

Categories: , ,

Description

Features & Benefits

  • Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia wide.
  • Modern Architectural Design
  • Custom Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Solid Hot Rolled W40 Profile
  • Fluorocarbon Coating, a superior finish to Powder coating
  • Single, Double or Triple Glazing Available
  • High Quality Door Hardware
  • Designed to Impress and Built to Last
  • 5 Year Warranty

Specifications

  • Zen Steel Frame Awning & Casement Windows – Ottostumm W40 Swiss Steel Profile
  • Window Design: Custom
  • Window Type: Awning & Casement
  • Location: External or Internal
  • Mounting Type: Tabs Outside of Jamb, Pre-Drilled Mounting Holes Inside of Jamb – visit our Mounting Types page for more options
  • Window Jamb & Sash: 55mm x 27mm
  • Glass Type: Visit our Glazing options page
  • Glass Thickness: Visit our Glazing options page
  • TDL: 20T or 30T
  • Beads: CTL 10, CTL15, CTM20, CTM30
  • Colour Finish: Visit our Paint Finishes page
  • Hardware: Visit our Window Hardware page

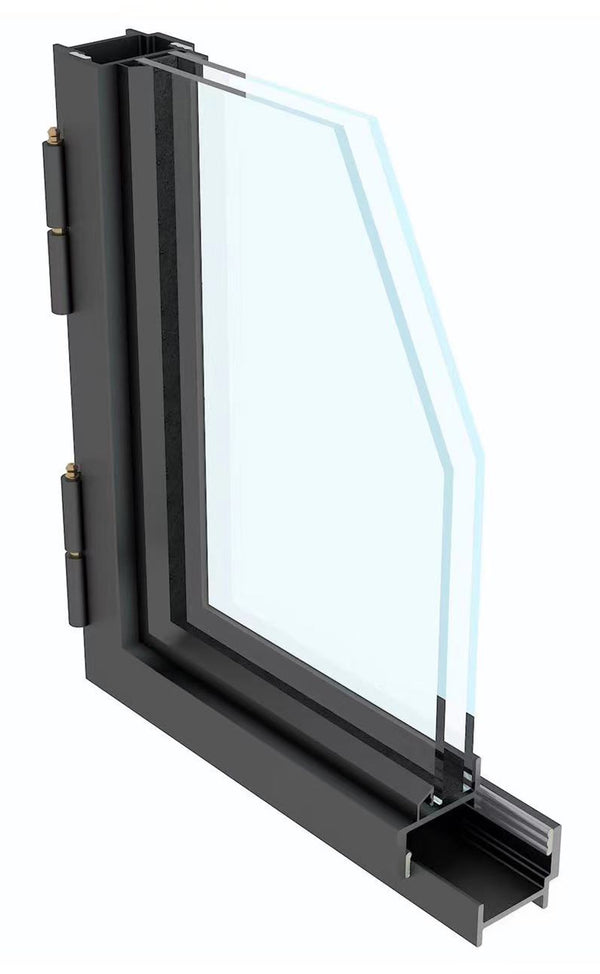

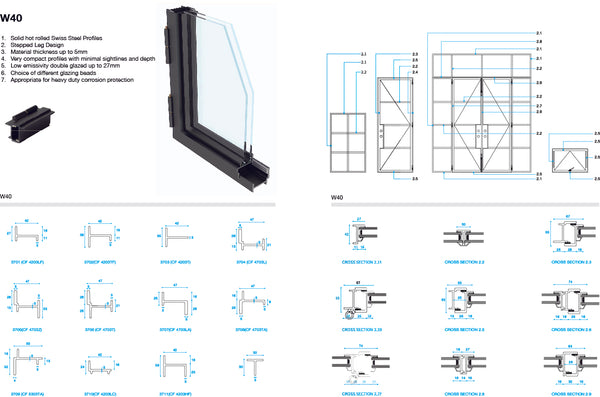

  • Material: Solid Hot Rolled Swiss Ottostumm W40 Steel Profile
    Stepped leg design, material thickness up to 5mm – Very compact profiles with minimal depth and sight-lines
    Appropriate for heavy duty corrosion protection
  • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
    Gritblasting SA 2.5; The 1st layer is a sealing primer; The 2nd layer is a high-durable top coating; Total thickness is at least 150-180 microns according to VMRG quality requirements.
  • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Package: Sealed Wooden Box
  • CAD Design Drawing: Yes
