Steel Frame Glass Hinge Doors - Galvanised W40 Profile - Zen Doors

$4,400.00

  • OTTOSTUMM W40 SOLID HOT ROLLED STEEL PROFILE
  • PRICES EXCLUDE DELIVERY TO SITE (CONTACT US FOR A DELIVERY QUOTE)
  • PRICES INCLUDE STEEL DOOR JAMB, HANDLES, ROLLER CATCHES, FLUSH BOLTS, SEALS, SINGLE TOUGHENED SAFETY GLASS
  • IMAGE SHOWN IS JUST FOR REFERENCE FOR PRICE ESTIMATE PLEASE SELECT THE CLOSEST SIZE FROM THE DROP DOWN MENU
  • PRICE INCLUDES GST
  • ALL DOORS CUSTOM MADE NO STANDARD SIZES
Design and glass options are completely flexible, if you have seen something you like please send it to us and we can price it.

Features & Benefits
  • Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia wide.
  • Modern Architectural Design
  • Custom Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Solid Hot Rolled Swiss Ottostumm Steel Profile
  • Fluorocarbon Coating better than Powdercoating
  • Steel Door Jamb Included for Extra Strength and Longevity
  • Single Glazed Toughened Safety Glass included in price ( Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E)(Double Glazing or Laminated Glass available at extra cost)
  • High Quality Lever Handles with Spring Latch or Custom Steel Pull Handles with Roller Catches Included in price
  • Flush bolts for double doors included
  • Weather seals included
  • Designed to Impress and Built to Last
  • Orders Made from June 2023 - *5 Year Warranty - Must comply with our installation requirements.

Specifications

  • Zen Steel Hinge Doors & Windows – Ottostumm W40 Swiss Steel Profile
  • Door Design: 4lite/3lite/2lite/1lite (Within 4 glass panels and 3 mullion bars)
  • Door Type: Hinged Doors
  • Location: Exterior or Interior
  • Hinges: 3 or 4 Heavy Duty Welded, Lift-off, 180-degree hinges with brass washers
  • Mounting Type: Tabs Outside of Jamb or Pre-Drilled Mounting Holes Inside of Jamb
  • Door Jamb: 55mm x 67mm (Overall)
  • Open way (entering): In-Swing or Out-Swing
  • Sill/Threshold: 25mm x 150mm Forward Sloping or Square
  • Door Bottom Rubber Seal: YES or NO
  • Roller Catches: YES
  • Glass Type: Clear/Reeded/Frosted and more
  • Glass Thickness: 5mm/6mm/8mm/10mm single glazed toughened safety glass
  • TDL: 20T
  • Beads: CTM20
  • Colour Finish: Zen Standard Finishes (Non-standard and Custom Finishes available at extra cost)

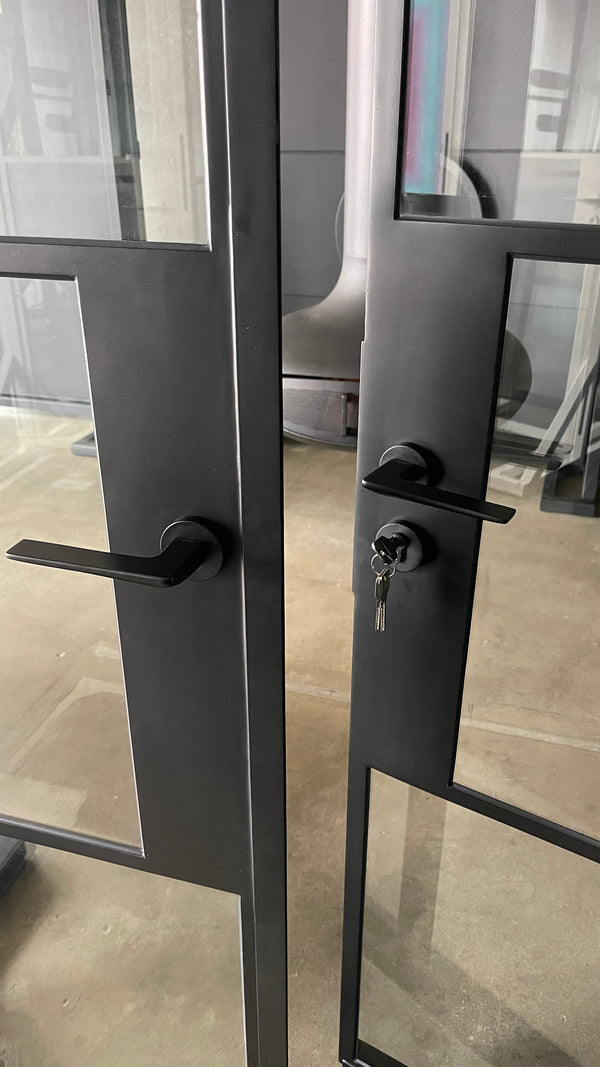

  • Handles: IVER Lever Handles with spring latch or Custom Steel Pulls
  • Lock: Available at extra cost (Single Deadbolt, Mortice Lock, Electronic Strike)

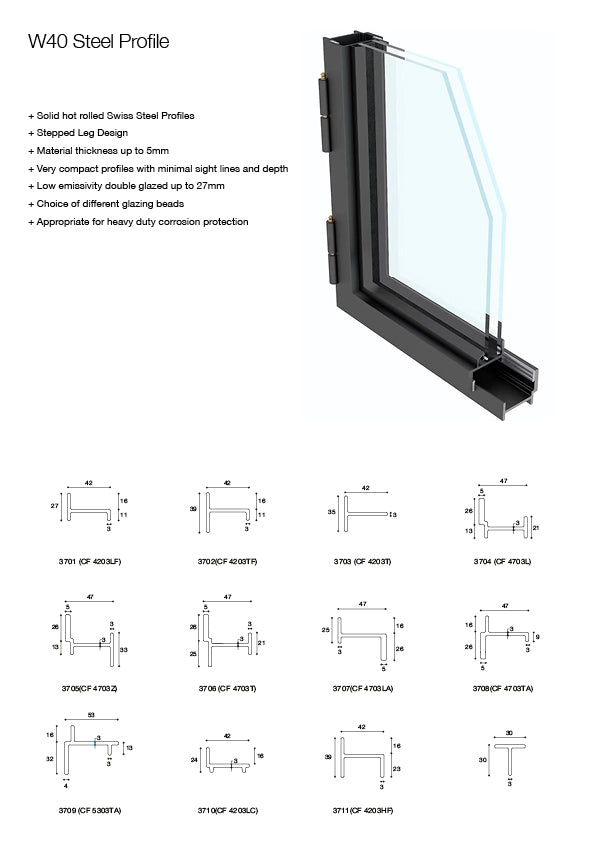

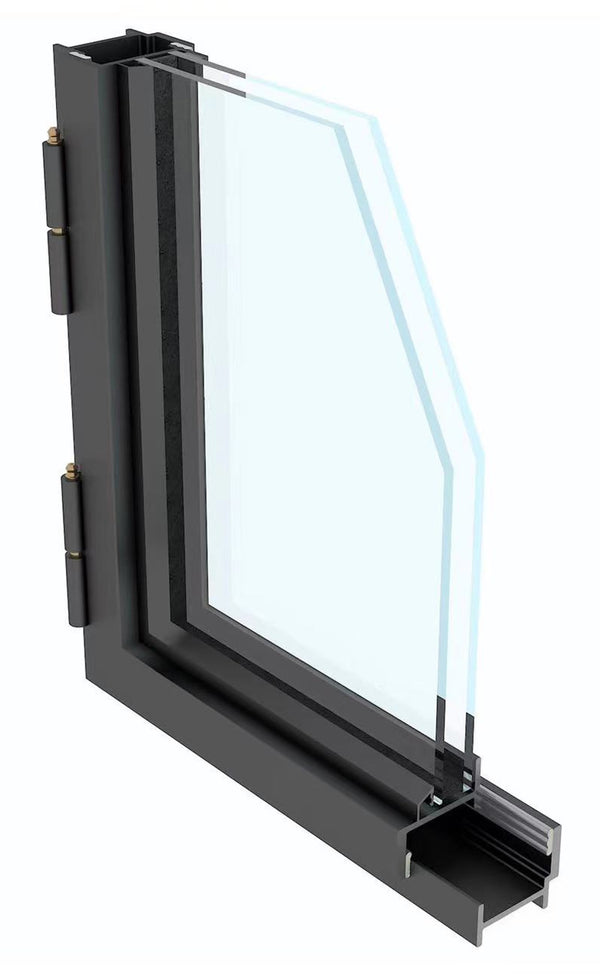

  • Material: Solid Hot Rolled Swiss Ottostumm Steel Profile
    Stepped leg design, material thickness up to 5mm - Very compact profiles with minimal depth and sight-lines
    Appropriate for heavy duty corrosion protection
    Surface treatment: Zinc-magnesium pre-coating for corrosion protection
    Gritblasting SA 2.5;
    The 1st layer is a sealing primer
    The 2nd layer is a high-durable top coating;
    Total thickness is at least 150-180 microns according to VMRG quality requirements.
    Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Package: Sealed Wooden Box & Iron Skid Package

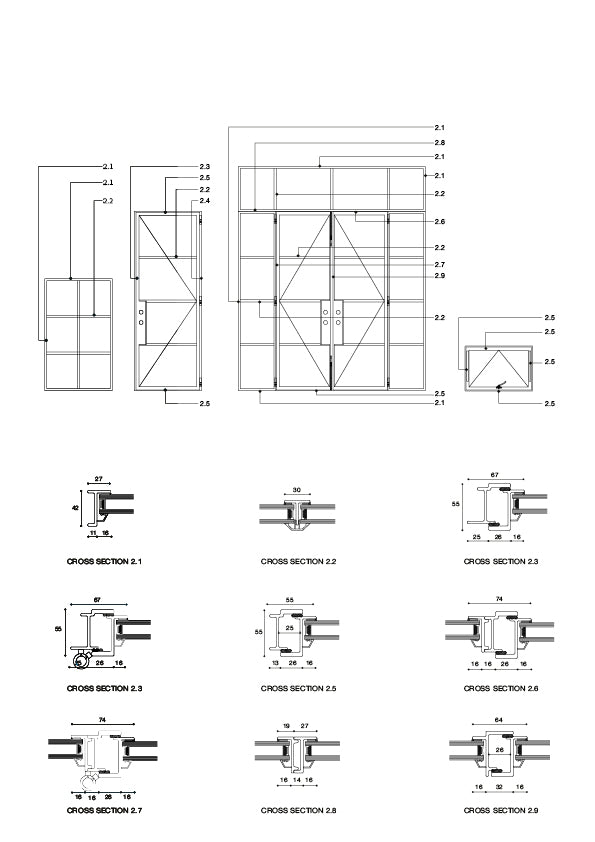

  • CAD Design Drawing: Yes
AS2047 Steel Doors & Steel Windows

TESTED & ACCREDITED TO AUSTRALIAN/NEW ZEALAND STANDARD –
AS2047-2014 WINDOWS AND EXTERNAL GLAZED DOORS IN BUILDINGS

We have performed the following tests to meet AS2047-2014 Windows and External Glazed Doors in Buildings and can provide a Certificate of Compliance:
  1. Deflection / Span Ratio AS/NZS 4420.1-2016 section 3
  2. Operating Force AS/NZS 4420.1-2016 section 4
  3. Air Infiltration at ±75 Pa AS/NZS 4420.1-2016 section 5
  4. Water Penetration AS/NZS 4420.1-2016 section 6
  5. Ultimate Strength Test AS/NZS 4420.1-2016 section 7

NOTE: Total Door Frame and Sidelight Windows can be custom made to any size you need, please contact us if you require highlight/sidelight windows and need a more customised estimate.

NOTE: External Doors and Windows can be supplied glazed or un-glazed depending on your building surveyor/certifier.
