Zen 4Lite Steel Frame Glass Hinge Door Internal (Left Hand Active) – Galvanised W40 Profile – Zen Doors & Windows

• Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia wide.
• Modern Architectural Design
• Custom Hand Made Construction for Durable Functionality
• Built from High Quality Galvanised Solid Hot Rolled W40 Profile
• Fluorocarbon Coating, a superior finish to Powder coating
• High Quality Door Hardware
• Designed to Impress and Built to Last
• 5 Year Warranty

Product Specifications

• Zen Steel Hinge Doors & Windows – Ottostumm W40 Swiss Steel Profile
• Door Design: 4Lite
• Door Size: H2398mm x W798mm
• Door Type: Hinged Doors
• Location: Internal
• Hinges: 3 Heavy Duty Welded, Lift-off, 180-degree hinges with brass washers
• Mounting Type: Pre-Drilled Mounting Holes Inside of Jamb
• Door Jamb & Sash: 55mm x 67mm (Overall)
• Open way (entering): In-Swing Left
• Sill/Threshold: No
• Door Bottom Rubber Seal: No
• Magnetic Catches: Precision Magnetic Catches
• Glass Type: Low Iron Reeded
• Glass Thickness: 5mm single glazed toughened safety glass
• TDL: 20T
• Beads: CTL10
• Colour Finish: Custom Match – Pittella Bronze
• Pull Handles: Zen H24 Straight Welded Pull Handles
• Locks: No
• Material: Solid Hot Rolled Swiss Ottostumm W40 Steel Profile
  Stepped leg design, material thickness up to 5mm – Very compact profiles with minimal depth and sight-lines
  Appropriate for heavy duty corrosion protection
• Surface treatment: Zinc-magnesium pre-coating for corrosion protection
  Gritblasting SA 2.5; The 1st layer is a sealing primer; The 2nd layer is a high-durable top coating; Total thickness is at least 150-180 microns according to VMRG quality requirements.
• Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
• Package: No Crate or Packaging

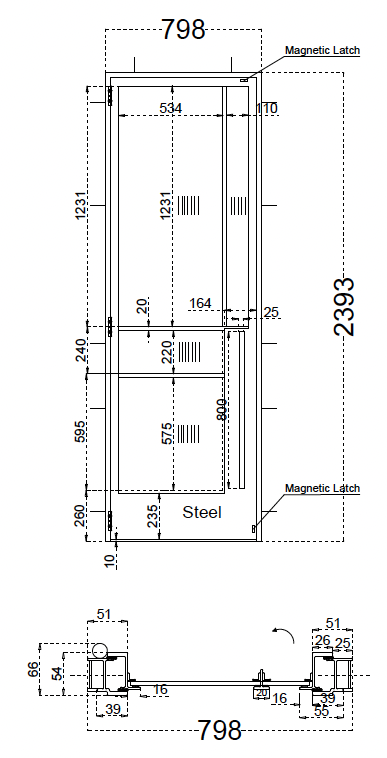

• CAD Design Drawing: Yes

NOTE: All Doors are pre glazed in the factory with glazing that meets Australian Standards.
