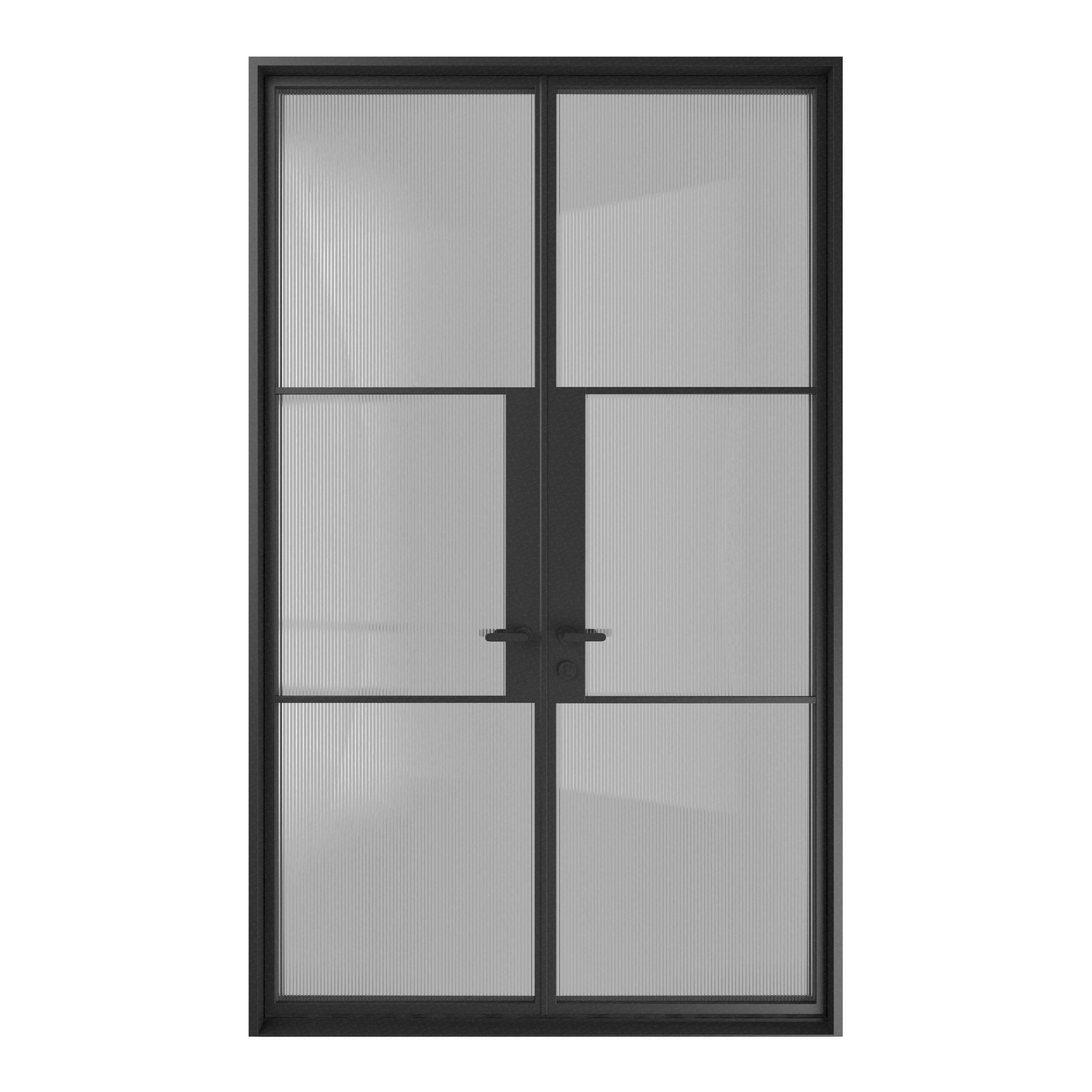

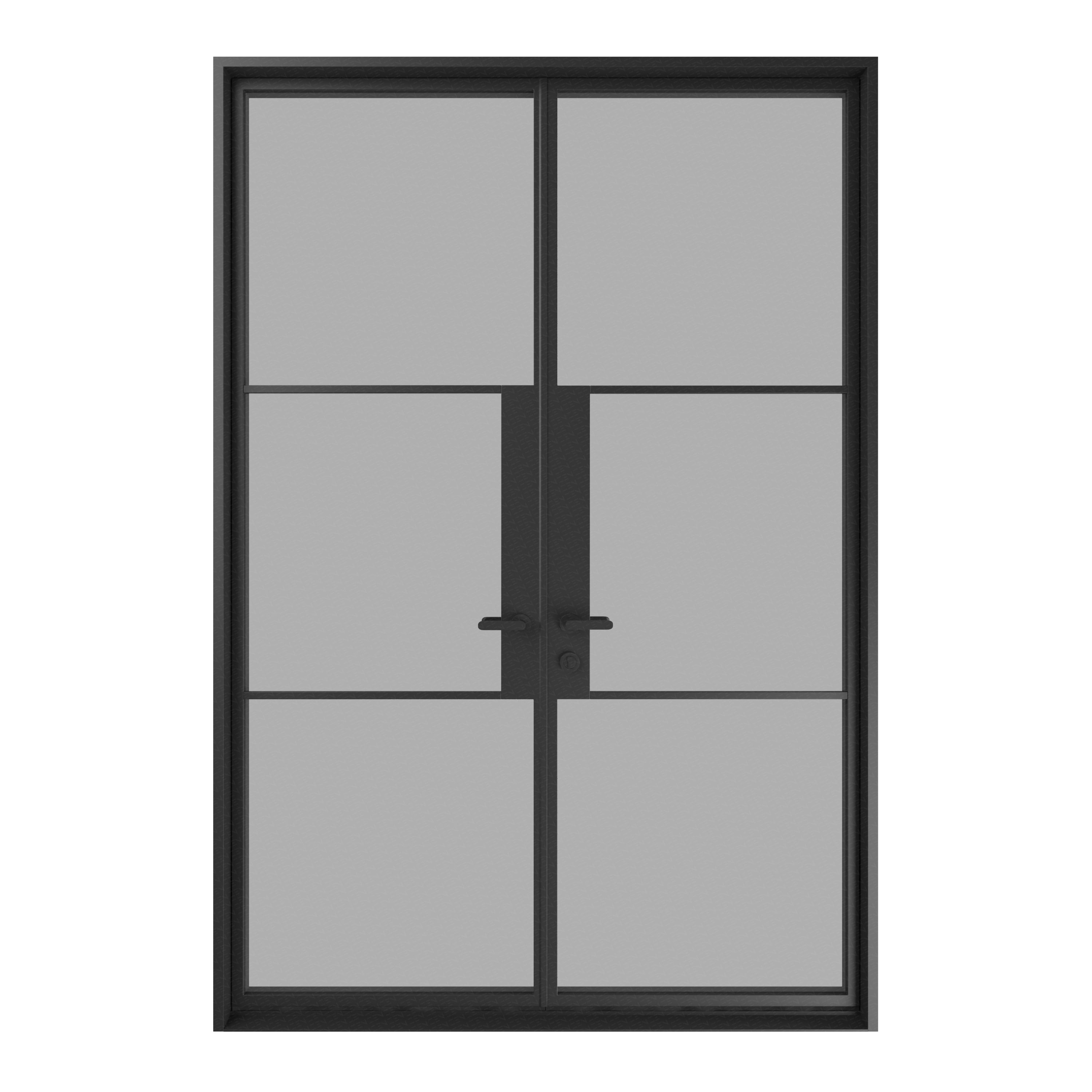

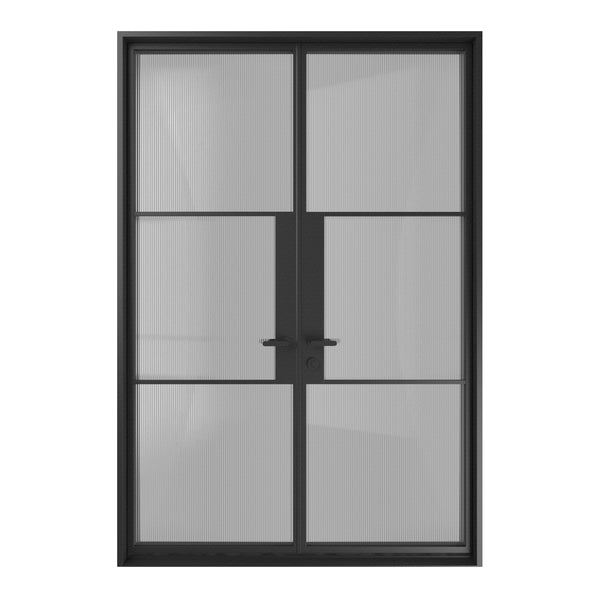

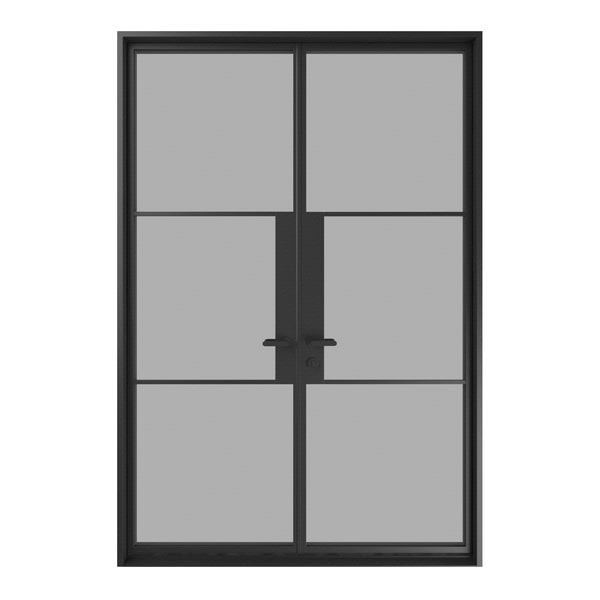

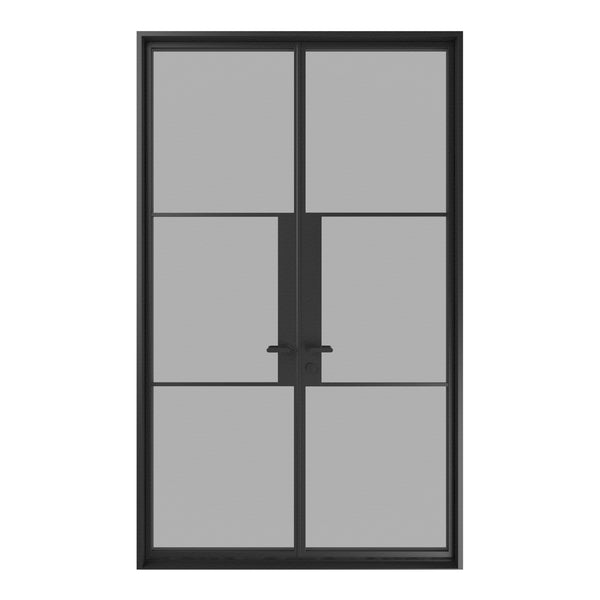

Zen 3Lite Steel Frame Glass External Hinge Doors (Right Hand Active) - Galvanised FPS50 Profile - Zen Doors & Windows

• Tested & Accredited to

• AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia wide.
• Modern Architectural Design
• Custom Hand Made Construction for Durable Functionality
• Built from High Quality Galvanised Steel Tube Profile
• Fluorocarbon Coating, a superior finish to Powder coating
• Steel Door Jamb Included for Extra Strength and Longevity

• Single Glazed Toughened Safety Glass
• High Quality Pittella Lucia Lever Handles with Mortice Lock Included
• Flush bolts for double doors included
• Weather seals included
• Designed to Impress and Built to Last
• 5 Year Warranty - Must comply with our installation requirements.

Specifications

• Zen Steel Hinge Doors – FPS50 profile
• Door Design: 3lite
• Door Type: Hinged Doors
• Location: Exterior
• Hinges: 3 or 4 Heavy Duty Welded, Lift-off, 180-degree hinges with brass washers
• Mounting Type: Pre Drilled Mounting Holes on Inside of Jamb with Plastic Cover Caps
• Door Jamb: 25mm x 100mm
• Door Sash: 30mm x 50mm
• Open way (entering): In-Swing Left & Right, Right Active Door
• Sill/Threshold: YES
• Door Bottom Rubber Seal: YES
• Roller Catches: YES
• Glass Type: 5mm + 16A (Argon) + 5mm Double Glazed Toughened Safety Glass
• TDL: 30T
• Beads: CTL 15
• Colour Finish: #1 Black
• Handles: Pittella Lucia Lever Handles and Pittella Mortice Lock
• Lock: YES
• Material: Precision cold formed galvanised FPS50 steel profiles - ”P” profile design
  3.2mm wall thickness tube with foam injected - Very compact profiles with minimal depth and sight-lines
  Surface treatment: Zinc-magnesium pre-coating for corrosion protection
  Gritblasting SA 2.5;
  The 1st layer is a sealing primer
  The 2nd layer is a high-durable top coating;
  Total thickness is at least 150-180 microns according to VMRG quality requirements.
  Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
• Package: Sealed Wooden Box & Iron Skid Package
• CAD Design Drawing: Yes

NOTE: All Doors are pre glazed in the factory with glazing that meets Australian Standards.
